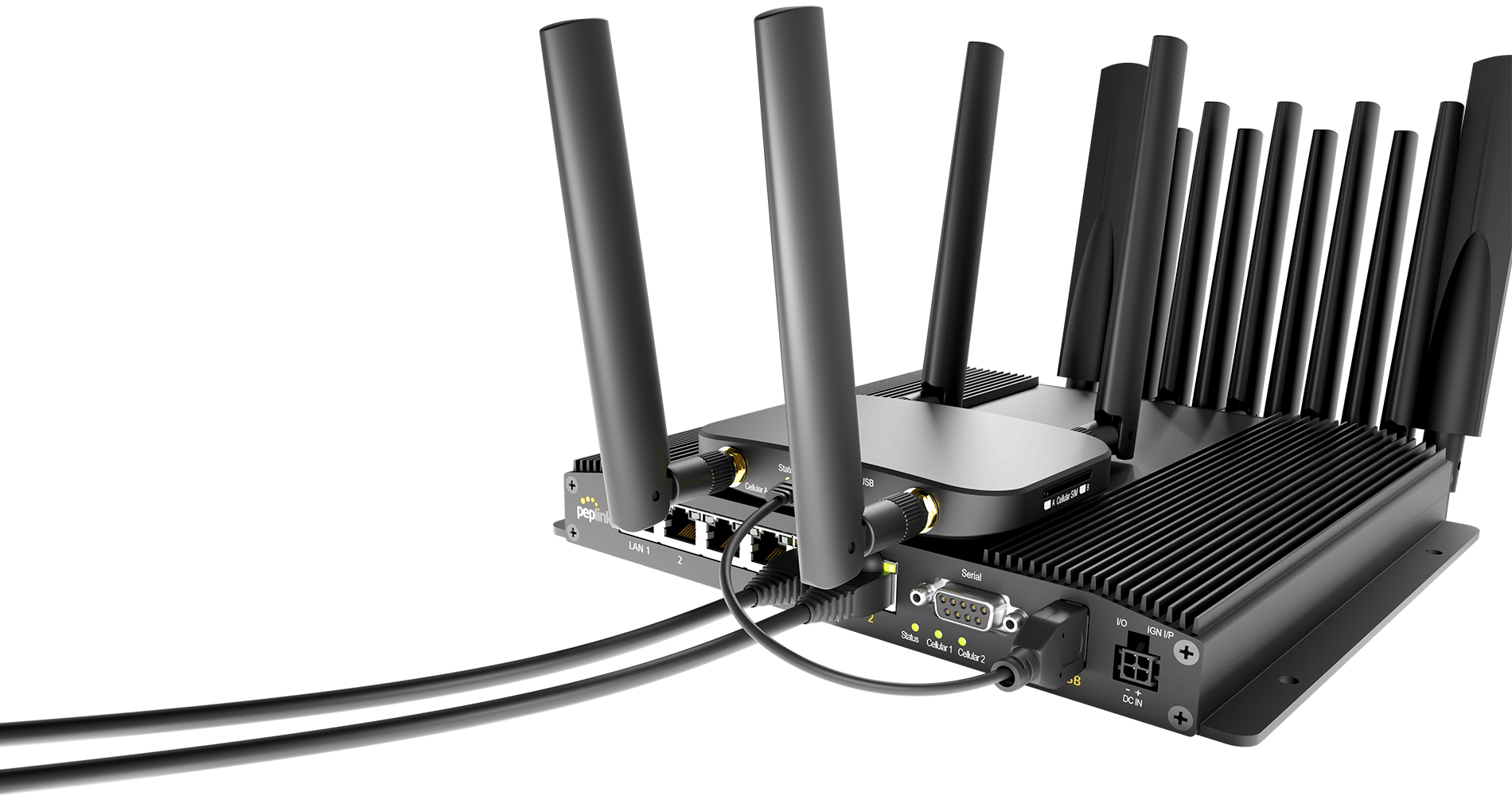

BR2 Pro

WiFi 6 & 5G

Faster, Wider, Stronger

The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input ensure an unbreakable connection in any scenario.

BR2 Pro

WiFi 6 & 5G

Faster, Wider, Stronger

The BR2 Pro is not just designed to be tough. Its dual 5G connections, Wi-Fi 6 and PoE input

ensure an unbreakable connection in any scenario.

West Networks Sales

Pre-Order Today:

Contact our sales team at

352-316-7701 sales@westnetworks.com

Pre-Order Today:

Contact our sales team at

352-316-7701 sales@westnetworks.com

West Networks Sales
MAX BR2 Pro

Ports and Connections

Ports and Connections

Oh, So Many WANs

Complement any SD-WAN deployment with the Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN. Not enough WANs? Add the MAX Adapter 5G for an instant third 5G connection. Literally, all the WANs to keep you going.

Oh, So Many WANs

Complement any SD-WAN deployment with the Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN. Not enough WANs? Add the MAX Adapter 5G for an instant third 5G connection. Literally, all the WANs to keep you going.

Specifications

WAN Interface:

  • 2x 10/100/1000/2500M Ethernet1
  • 2x 5G Modems with Redundant SIM Slots
  • 1x USB 3.0 Interface

LAN Interface:

  • 4x 10/100/1000M Ethernet

Wi-Fi Interface:

  • Simultaneous Dual-Band (2.4GHz / 5GHz)
  • Wi-Fi 6, 2X2 MU-MIMO
  • Wi-Fi WAN and/or AP

SpeedFusion features:

  • Hot Failover
  • WAN Smoothing
  • Bandwidth Bonding2

Number of PepVPN:

  • 2/5(3)

Features:

  • Drop-in Mode
  • Load Balancing/Failover
  • Ignition Sensing

Router Throughput:

  • 1 Gbps

PepVPN Throughput (No Encryption)

  • 400 Mbps

PepVPN Throughput (256-bit AES)

  • 200 Mbps

Recommended Users

  • 1-150

5G Cellular Data Rate4 (Downlink/Uplink)

  • 5G: 4 Gbps / 700 Mbps
  • LTE CAT-20: 2 Gbps / 150 Mbps

Antenna Connectors:

  • 8x SMA Cellular Antenna Connectors
  • 2x RP-SMA Wi-Fi Antenna Connectors
  • 1x SMA GPS Antenna Connector

Power Input:

  • DC 10 – 30V
  • 802.3at PoE

Power Consumption:

  • 30 W (max.)

Dimension (L x W x H):

  • 8.58 x 7.68 x 1.61 inches
  • 218 x 195 x 29.5 mm

Weight:

  • 2.42 pounds
  • 1.1 kg

Operating Temperature:

  • 40°– 149°F
  • -40°– 65°C

Humidity:

  • 15% – 95% (non-condensing)

Warranty:

  • 1-Year Limited Warranty

Certifications

  • 200 Mbps

Recommended Users

  • FCC, CE, RoHS
  • E-Mark (Motor Vehicle)
  • EN 61373 Shock and Vibration Resistance
  • EN 50155 Railway Applications
  • EN 61000 Electromagnetic Compatibility

Package Content

  • 1x BR2 Pro
  • 1x 12V3A Power Supply
  • 8x LTE/5G Antennas
  • 2x Wi-Fi Dual Band Antennas
  • 1x GPS Antenna
